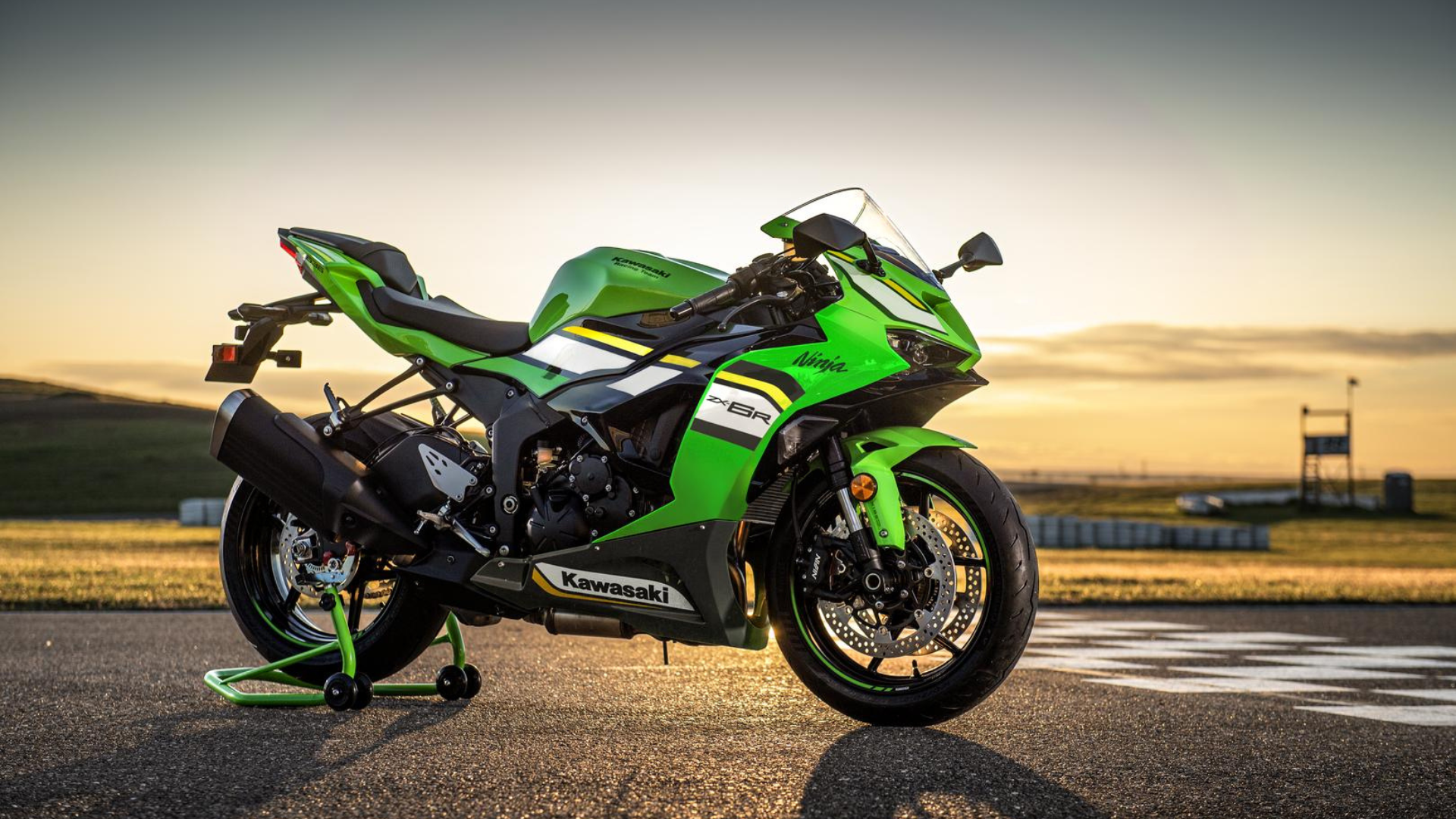

ZX-6R

Professional rider(s) on a closed course. Equipment illustrated and specification may vary to meet individual markets.

ZX-6R branding

ZX-6R

The Ninja ZX-6R delivers exceptional performance with cutting-edge technology and aggressive styling.

READ MORE

MODEL OVERVIEW

CONCEPT
LATEST MODELNEW MODEL

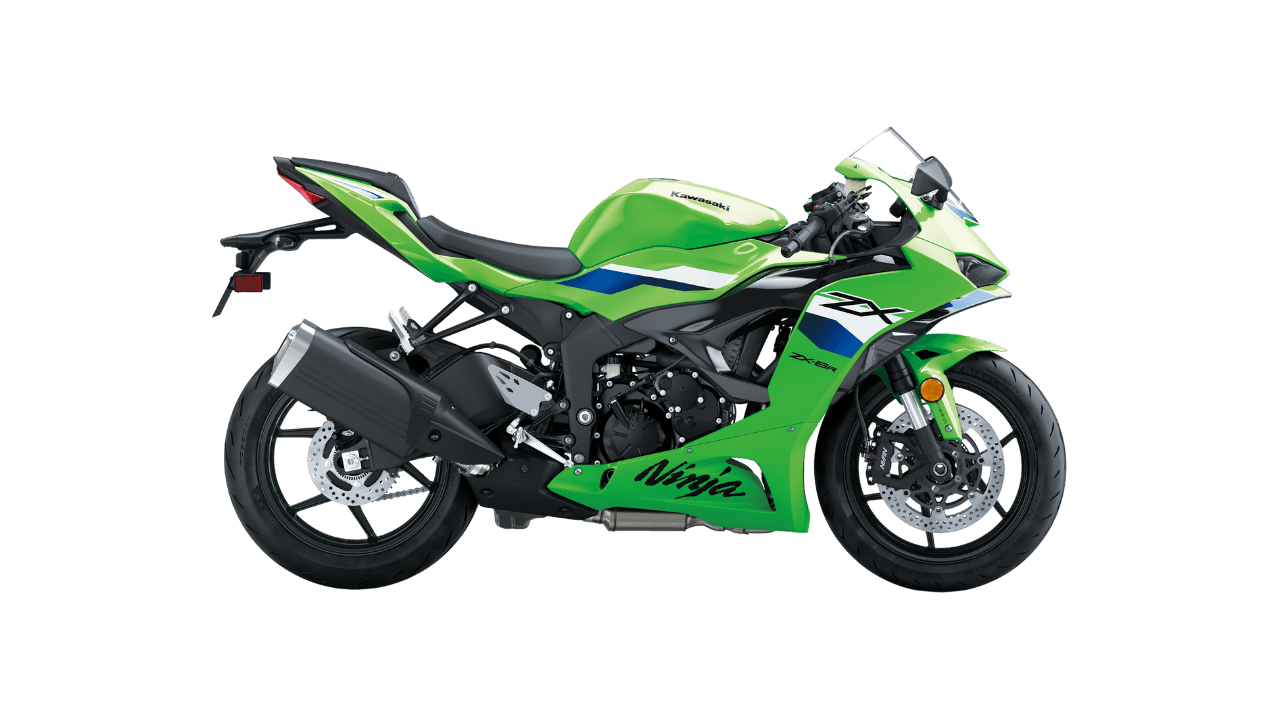

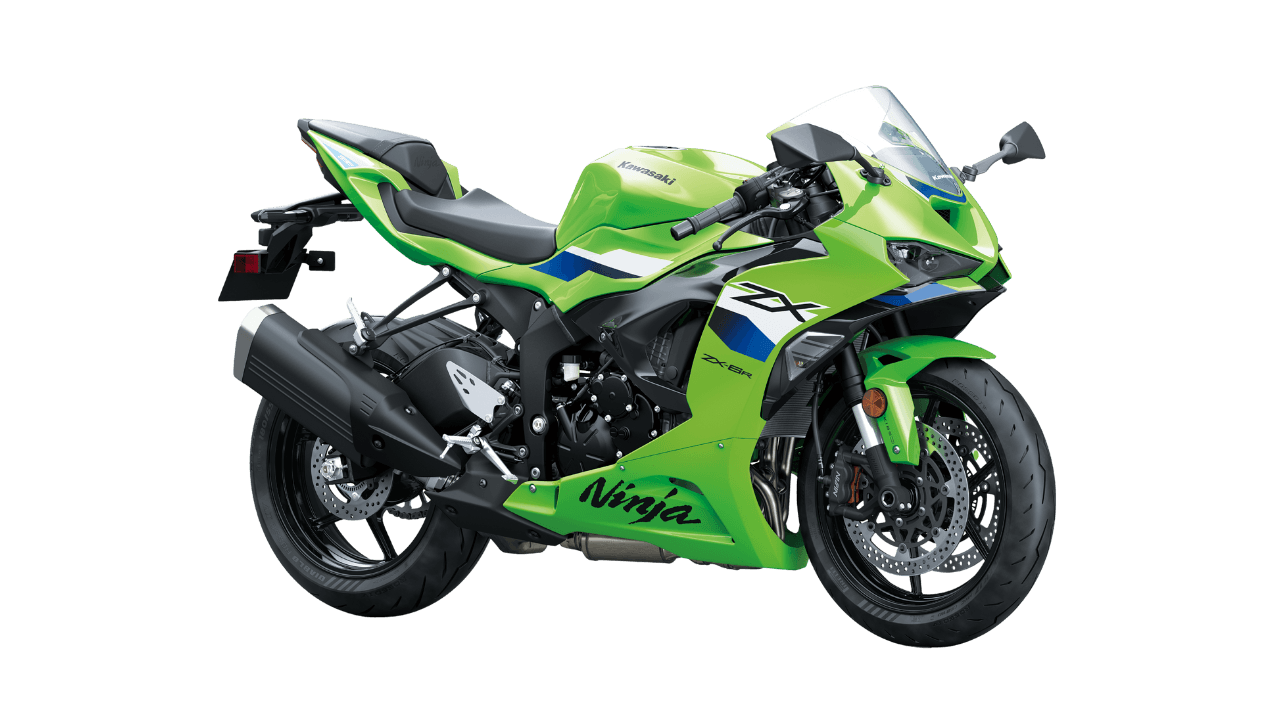

ZX-6R

Kawasaki’s Ninja ZX supersport models have always been renowned for their circuit potential. Even when focus changed from pure race to real-world riding exhilaration with the adoption of a 636 cm3 engine, this race-DNA was carefully maintained. Two generations later, the Ninja ZX-6R continues to offer superior performance across the rev-range thanks to its 37 cm3 displacement advantage, and sublime handling thanks to its racederived chassis—characteristics that allow the rider to become one with their machine as it provides supersport-style fun and excitement in situations ranging from the racetrack to canyon roads and mountain passes to the city.

READ MORE
ZX-6R
SPECS

TECHNICAL SPECIFICATIONS

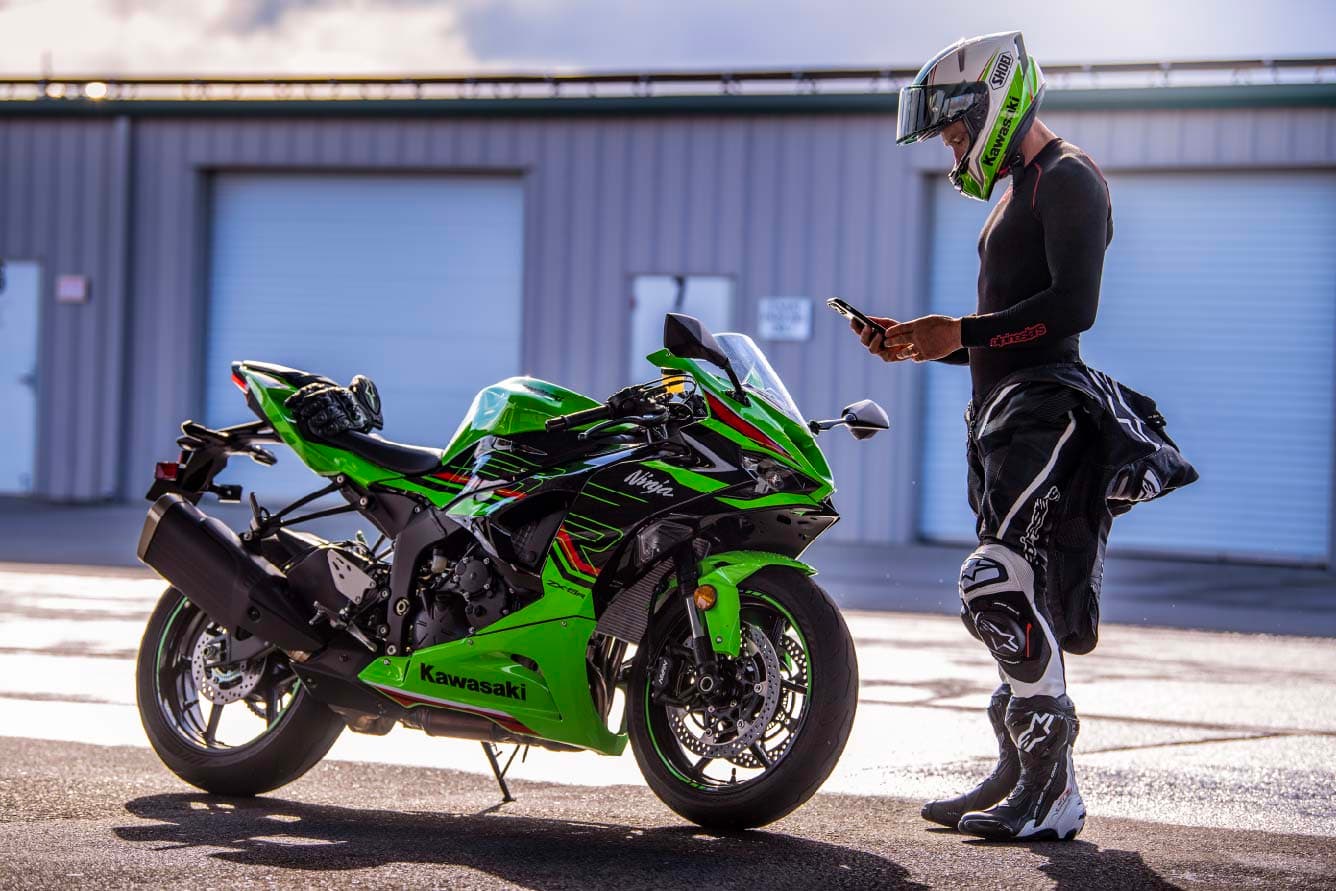

INTEGRATED
RIDING MODE
SELECTION

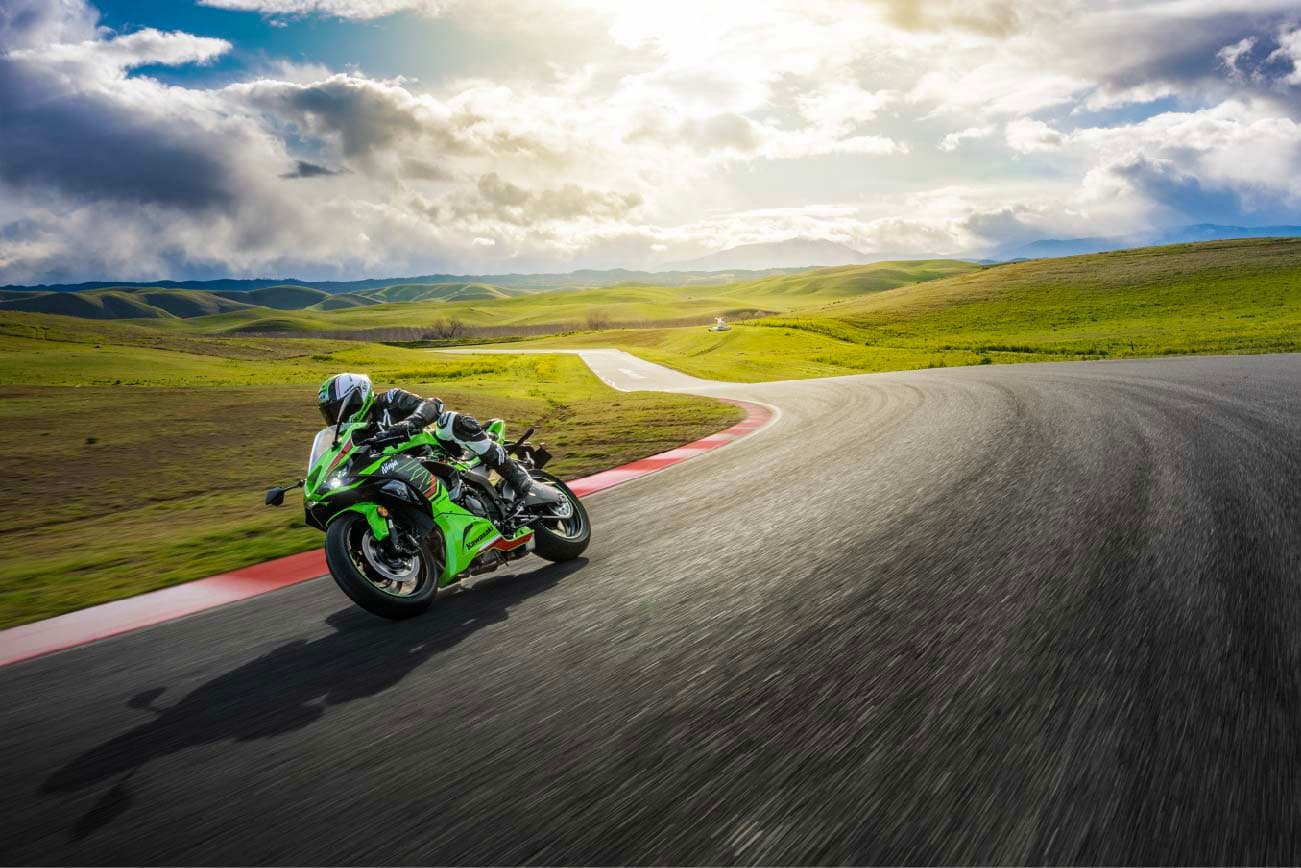

POWER MODE
KAWASAKI

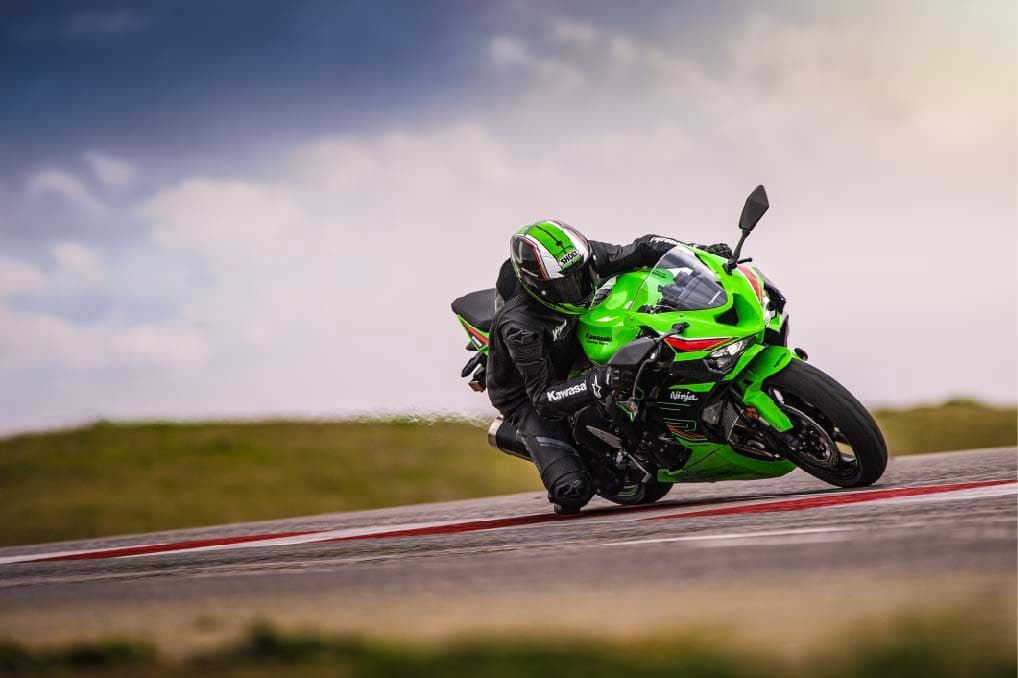

TRACTION CONTROL

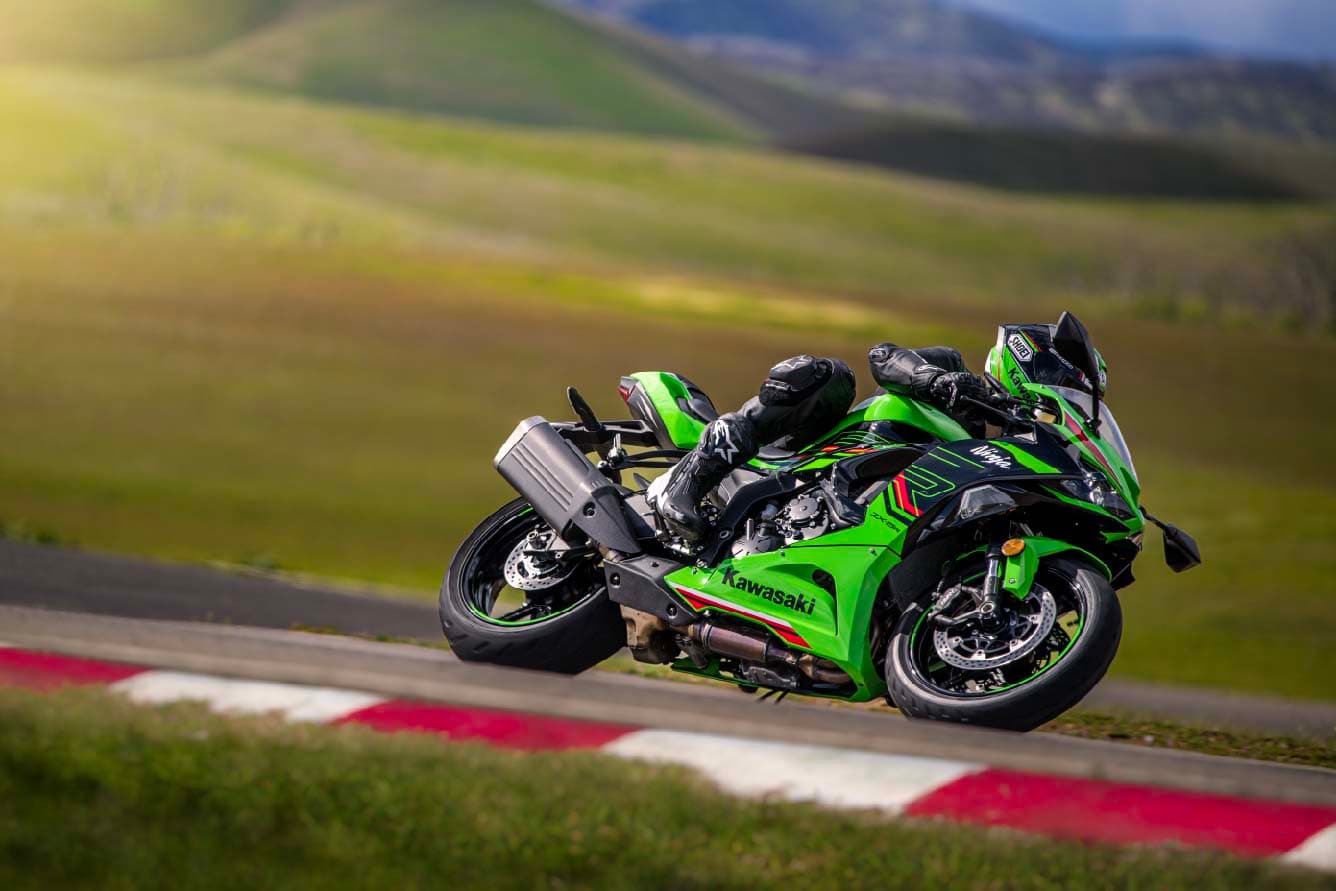

KAWASAKI QUICK SHIFTER
KQS
Engine
Liquid-cooled, 4-stroke In-Line Four, DOHC, 16 valves
Displacement
636 cm3
Bore x Stroke
67.0 x 45.1 mm
Compression Ratio
12.9:1
Fuel System
Fuel injection: ø38 mm x 4 with oval sub-throttle
Ignition
Digital
Starting
Electric
Transmission
6-speed, return
Maximum Power
91.0 kW {124 PS} / 13,000 min-1
Maximum Torque
69.0 N·m {7.0 kgƒ·m} / 10,800 min-1
Lubrication System
Forced lubrication, wet sump
Maximum Power with Ram Air
95.2 kW {129 PS} / 13,000 min-1
Front Suspension
ø41 inverted fork (SFF-BP) with rebound and compression damping and spring preload adjustability, and top-out springs
Rear Suspension
Bottom-Link Uni Trak, gas-charged shock with piggyback reservoir, compression and rebound damping and spring preload adjustability
Front Brakes
Dual semi-floating ø310 mm discs (Effective diameter: ø275 mm) Dual radial-mount, monobloc, opposed 4-piston
Rear Brakes
Single ø220 mm disc (Effective diameter: ø186 mm) Single-bore pin-slide
Overall Length
2,025 mm
Overall Width
710 mm
Overall Height
1,105 mm
Ground Clearance
130 mm
Seat Height
830 mm
Curb Weight
198 kg
Fuel Capacity
17 litres
Wheelbase
1,400 mm

Get brochure & catalogue of this model to learn more about the motorcycle model.

ZX-6RNinja ZX-6R Brochure
